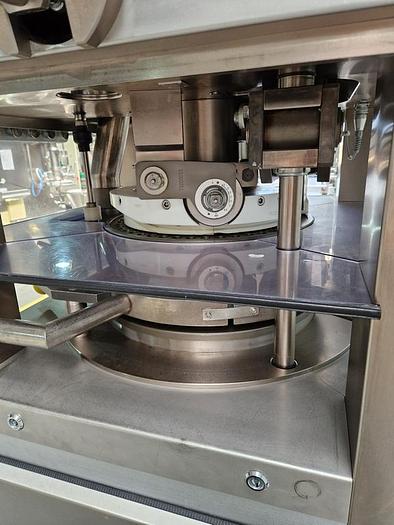

A TABLETTE MACHINE Korsch Mod PH 300

A TABLETTE MACHINE Korsch Mod PH 300

Ubicación:Sabadell, España

oLlamar +34 93 717 10 71 +34 654 27 23 13

Descripción

POSITION NO. POSITION NO: 06-0407 TO ROTARY TABLET PRESS BRAND: Korsch MODEL: PH 300 YEAR: 2002 DESCRIPTION: - Single rotary tableting machine, with 47 stations. - Tool type EU 19 with BBS dies ( die diameter 22 mm) - Only for unguided tools - Output from 28,200 to 282,000 tablets/hour - Pressing force max. 80 kN, prepressing force max. 20 kN - Max. tablet dia. 13 mm - Tablet height max. 8.5 mm - Max. filling depth 18 mm, depending on filling curve (filling curve 10 mm installed) - Filling hopper with flange for attaching Bohle MCG500/900 powder filling container - Force feeder (Fill-o-o-matic) for fine powder materials (1 spare force feeder available) - Quick switch for defective tablets - Korsch PHK2i Plus pressure force control system - Siemens touch screen, software operating system Windows CE - PLC Siemens S7-400 - Tool set available 2x 47 pcs. for diamond tablet, with quick-change tooling kit

Especificaciones

CondiciónUsado
